PS Dark 400

A complete roofing system with solar power generation built in. No rack. No penetrations. One warranty.

Request a Quote ↓ Data Sheet

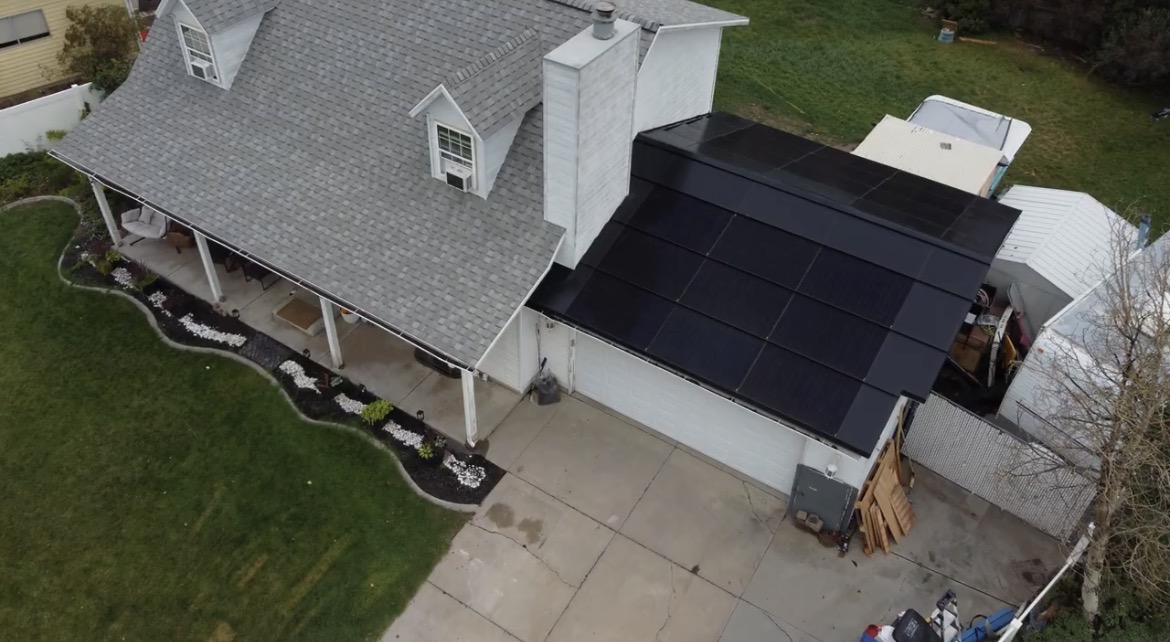

Installations

What it looks like on a real roof.

Specifications

Full technical data.

Electrical

Max Power (Pmax)400 W ± 5%

Efficiency20.5%

Open-Circuit Voltage (Voc)37.15 V ± 5%

Short-Circuit Current (Isc)13.55 A ± 5%

Voltage at Max Power (Vmpp)31 V

Current at Max Power (Impp)12.92 A

Bifaciality65 ± 5%

Max System Voltage1500 V

Max Series Fuse25 A

Mechanical

Dimensions68.1" × 44.4" × 2.8"

Coverage per Panel21.0 sq ft

System Weight51.8 lbs

Min. Roof Pitch2:12

Wind Speed Rating~132 mph

Tested Wind Load90 psf

Tested Snow Load45 psf

Fire RatingUL 790 Class A

Impact RatingUL 2218 Class 4

Temp Range−40°F to +194°F

Warranty

Product Warranty10 Years

Extended Warranty25 Years (optional)

Power Performance25 Years / 86%

Certifications

UL Listed ETL Listed UL 7103 BIPV UL/IEC 61215 UL/IEC 61730 IEC TS 62804 NEC Compliant Double Insulated Module

Installation Details

Engineered for every condition.

The PS Dark 400 ships with a complete flashing system for valleys, ridges, skylights, chimneys, and penetrations. Every detail is designed to the same weatherproofing standard as the panel itself.

Cross-Section Assembly

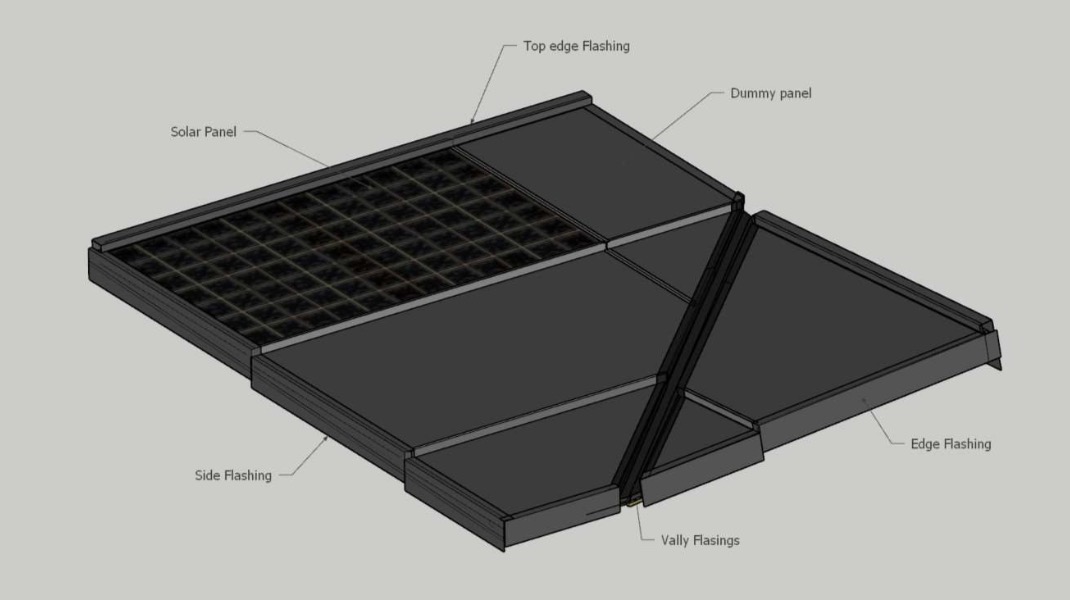

Valley Flashing

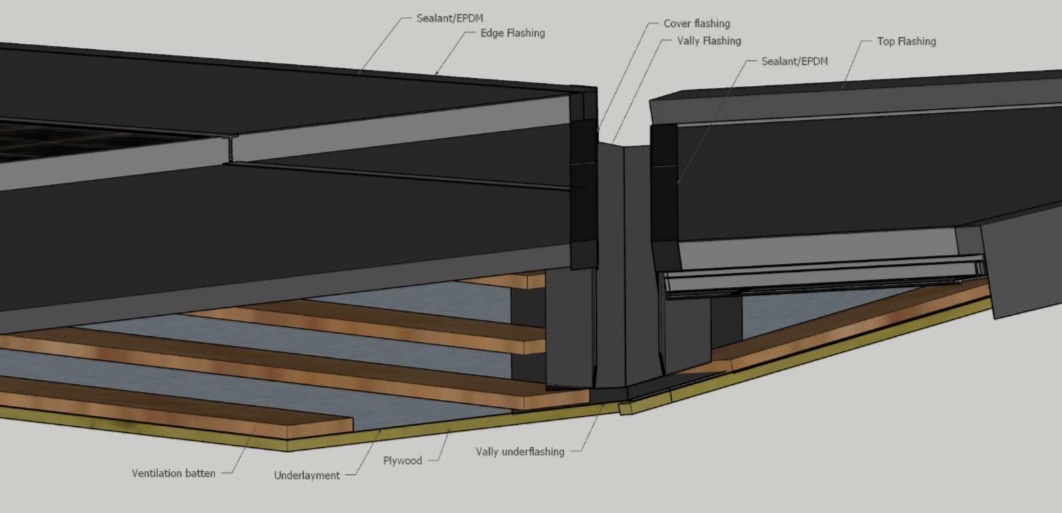

Valley Flashing w/ Battens

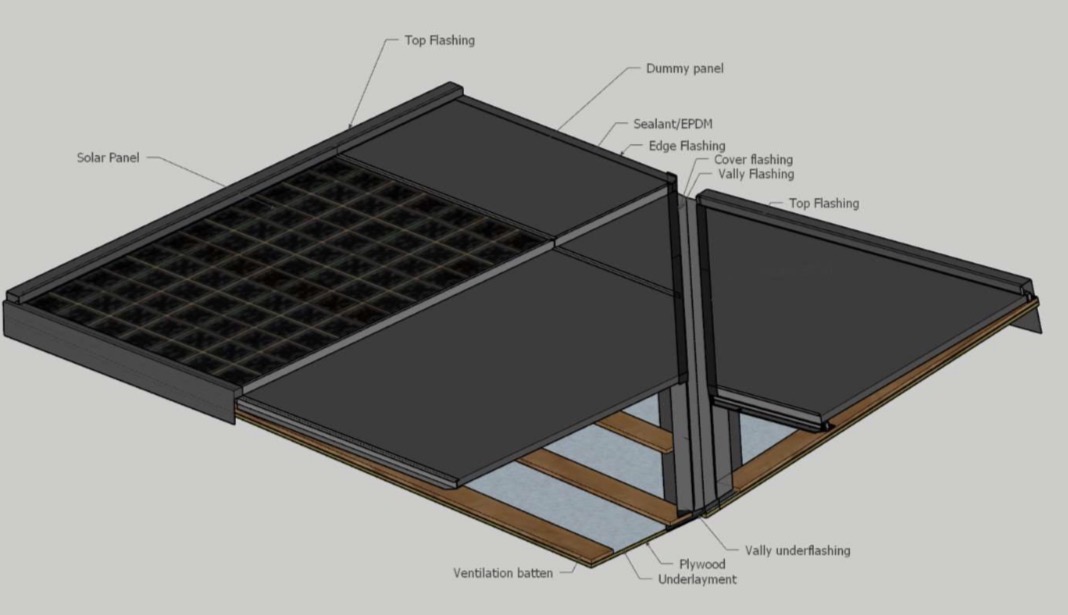

Valley Flashing w/ Battens (Detail)

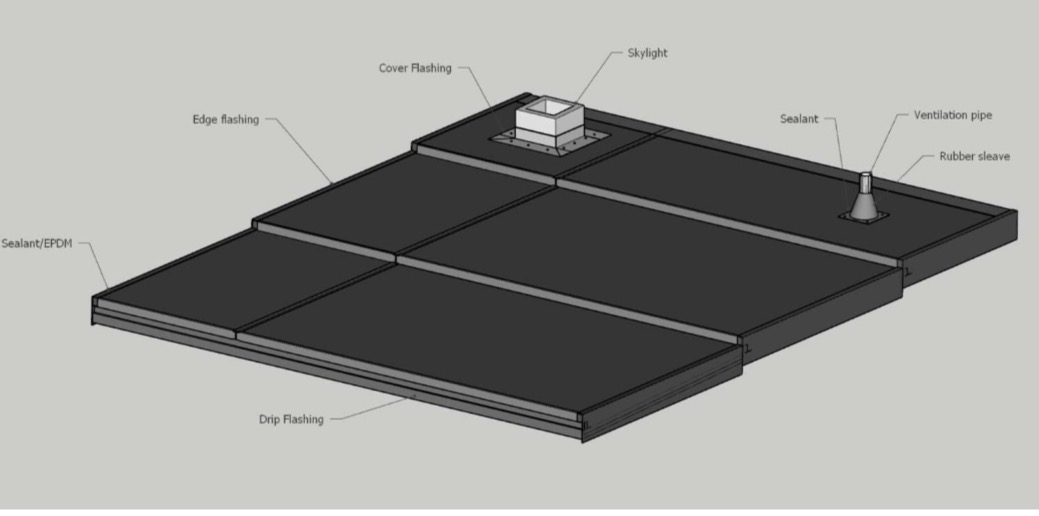

Skylight & Plumbing Vent

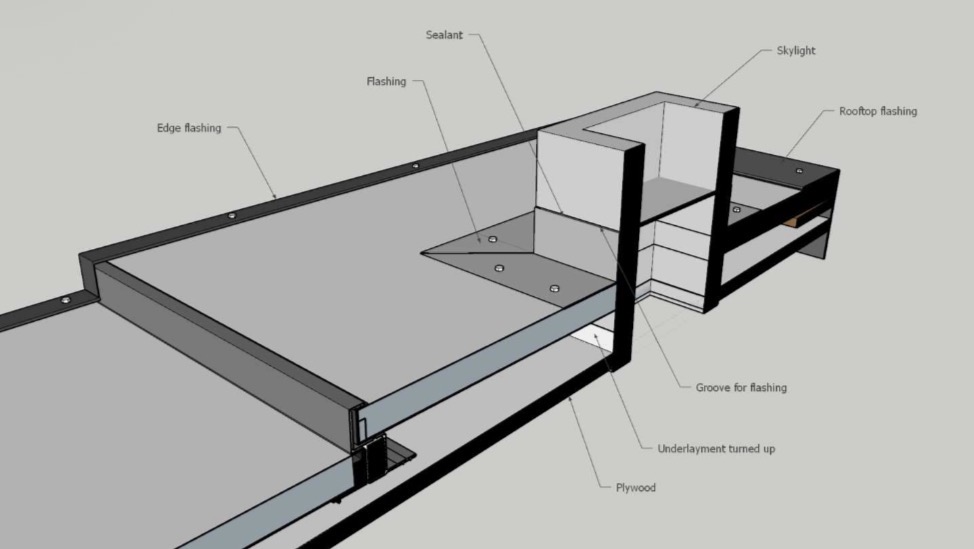

Skylight & Chimney Flashing

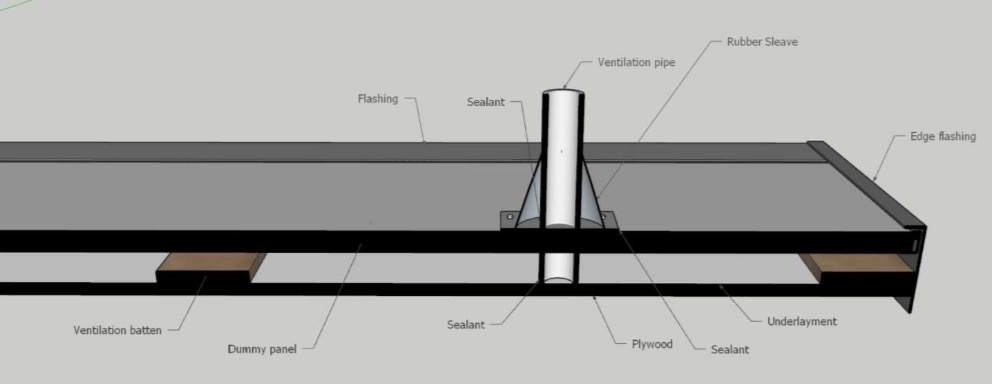

Plumbing Vent Flashing

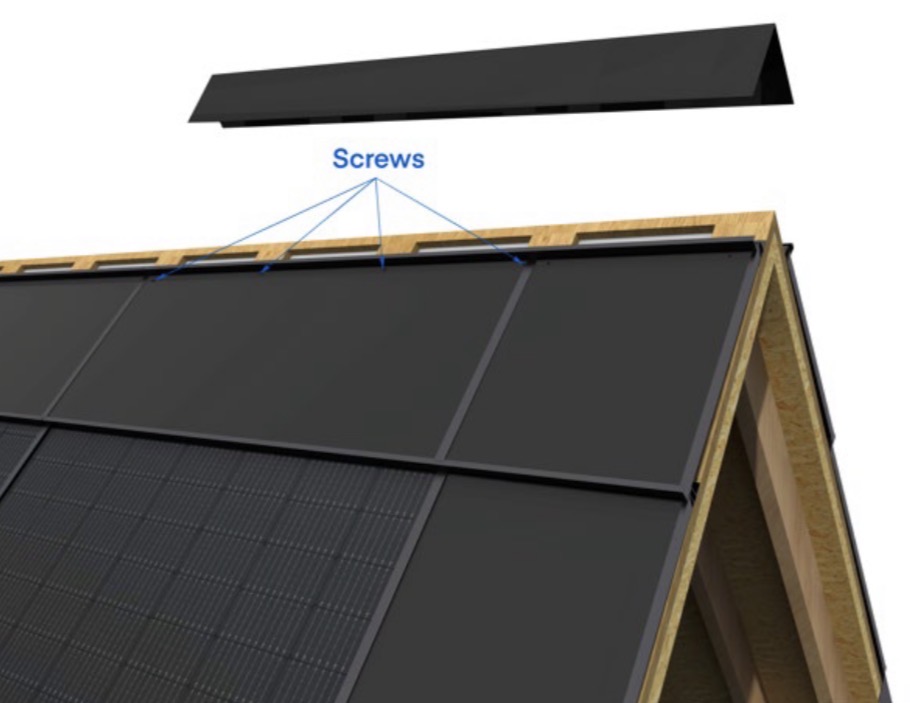

Ridge Cap & Ventilation

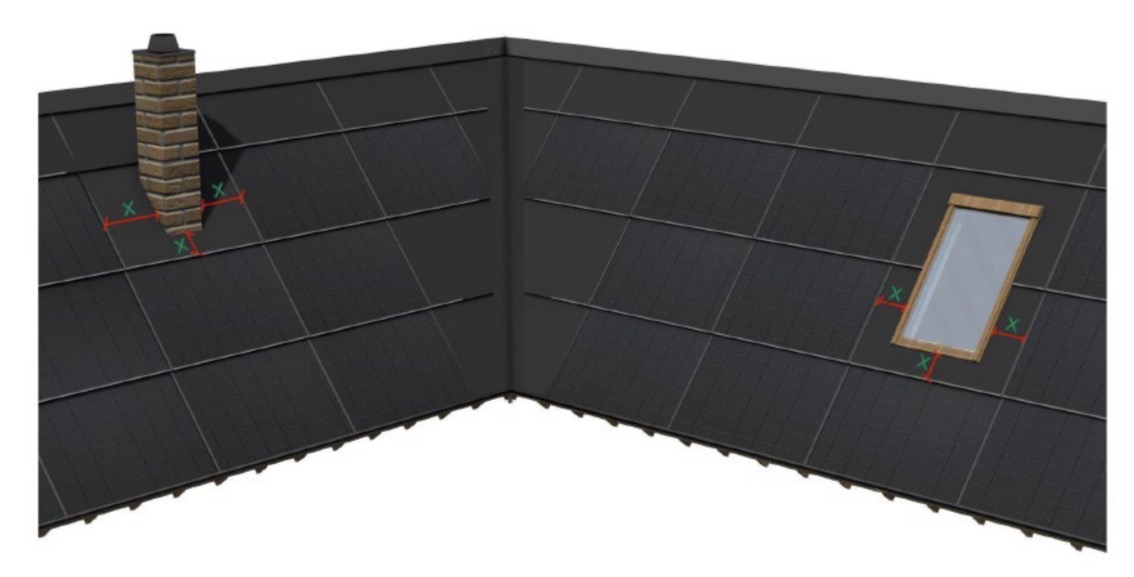

Skylight, Chimney & Valley

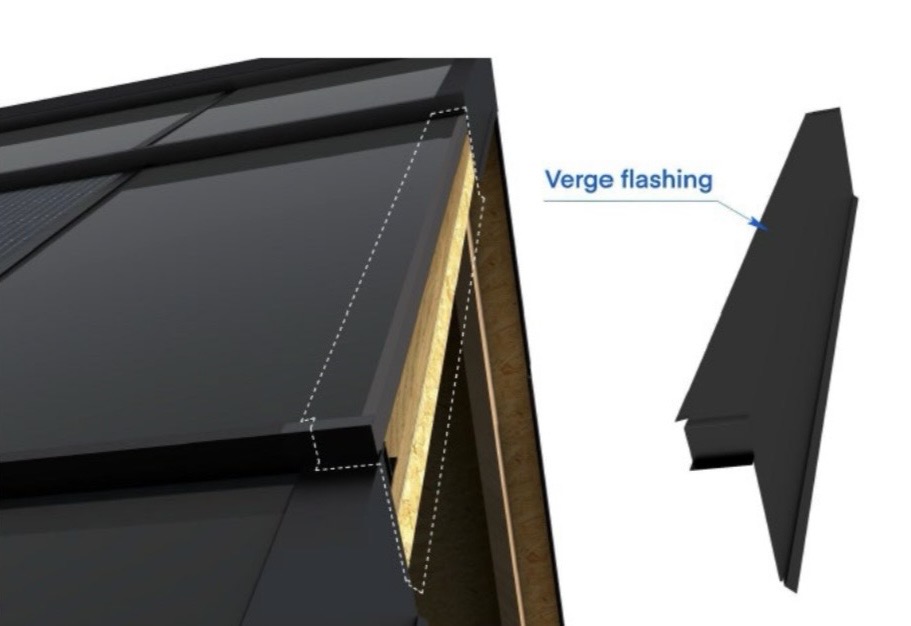

Verge Flashing

Walkable Surface

PS Dark 400 Full Data Sheet

Complete electrical, mechanical, and certification specifications. UL 7103 certified.

↓ Download PDF
